Mechanical Feed Metal Strip Applicator
Product List
The following is a partial list of the product order numbers and their specifications that this tool is designed to run. Updates to this list
are available on www.molex.com .
Terminal No.
19002-0030
19002-0033
19002-0041
19002-0061
Terminal Eng. No.
BB-5269Z
BB-5273Z
BB-5287Z
BB-5289Z
Wire Size
AWG mm 2
14-16 2.00-1.30
14-16 2.00-1.30
14-16 2.00-1.30
14-16 2.00-1.30
Insulation Diameter Max.
mm In.
3.94 .155
3.94 .155
3.94 .155
3.94 .155
Strip Length
mm In.
6.35 .250
6.35 .250
6.35 .250
6.35 .250

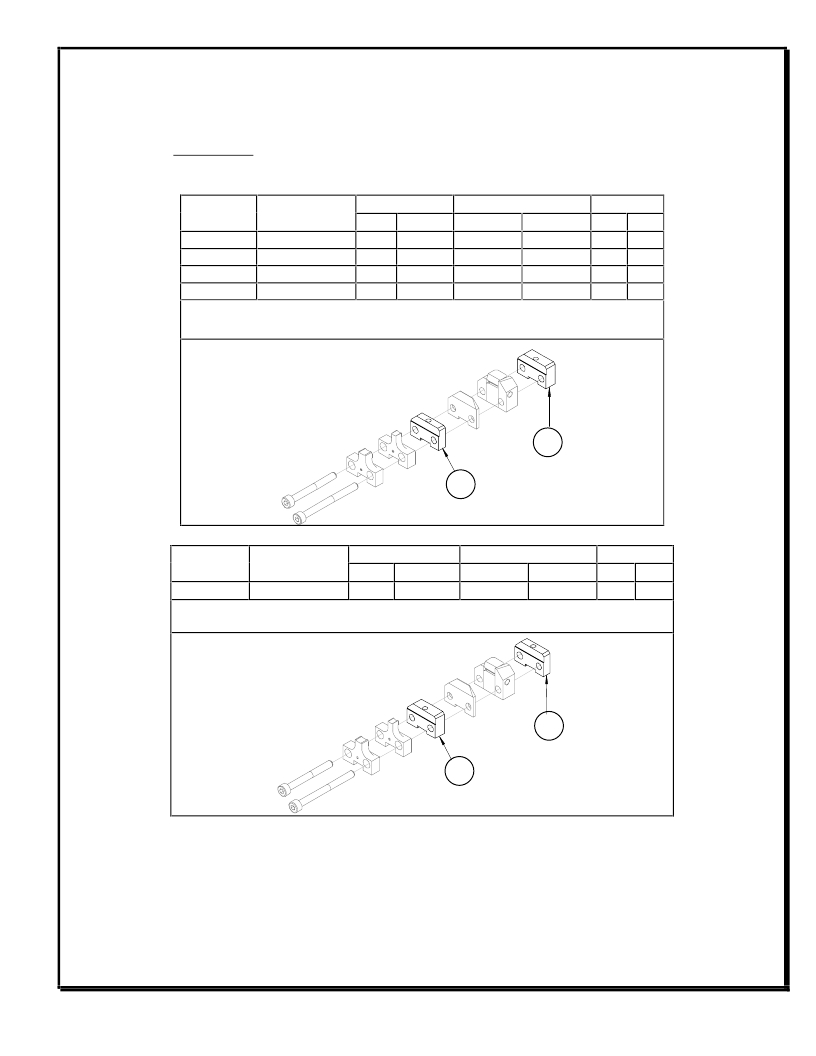

Note: To process these terminals, assemble spacers with cutoff tooling as shown in Figure 1.
See also parts list and assembly drawing.
36
35
Figure 1
Terminal No.
19002-0027
Terminal Eng. No.
BB-5263Z
Wire Size Insulation Diameter Max. Strip Length
AWG mm 2 mm In. mm In.
14-16 2.00-1.30 3.94 .155 6.35 .250
Note: To process this terminal, assemble spacers with cutoff tooling as shown in Figure 2.
See also parts list and assembly drawing.
35
36
Figure 2
Doc No. 63881-0200
Revision: C
Release Date: 12-15-04
Revision Date: 09-30-05
UNCONTROLLED COPY
Page 2 of 7
